Ever tried to wire an aftermarket attachment to a Bobcat ® loader utilizing the 7-Pin connector? In the past, it has been a difficult task. Now with the 2-EZ and 4-EZ controllers from Weber Manufacturing, connecting to a Bobcat ® loader is plug and play. The controllers convert the Bobcat ® signal into a 12 volt source that can be used to drive solenoids, relays or small electric motors.



The controllers can drive up to 15 amps momentarily and 10 amps constant. Both the input and output circuits are protected against overheating and short circuiting using current limiting technology. No need to worry about shorting the controller or the Bobcat ® computer. The best part is the output on the 2-EZ and 4-EZ controllers are capable of "Latching", meaning click the button once and it stays on until its clicked again. This is great when power needs to stay on without holding down the button. See the different models below.

2-EZ Controller (Part# 903A) Bobcat ® 2 Circuit controller

  • Plug and Play Technology

  • Converts 7-Pin Bobcat ® signals to useable 12 volt power.

  • Controls 2 circuits

  • Momentary and "latching" features

  • Integrated "latching" feature holds power on until button is pressed again

  • Current limiting technology prevents damage to the Bobcat ® or controller.

  • Tough outer case designed to resist impact damage

4-EZ Controller (Part# 921A)

Bobcat ® 4 Circuit controller

  • Plug and Play Technology

  • Converts 7-Pin Bobcat ® connector to 14 pin standard connector 12 volt power

  • Controls 4 circuits

  • Integrated "latching" feature holds power on until button is pressed again

  • Programmable from momentary to latching features

  • Slim inline design

  • Current limiting technology prevents damage to the Bobcat ® or controller

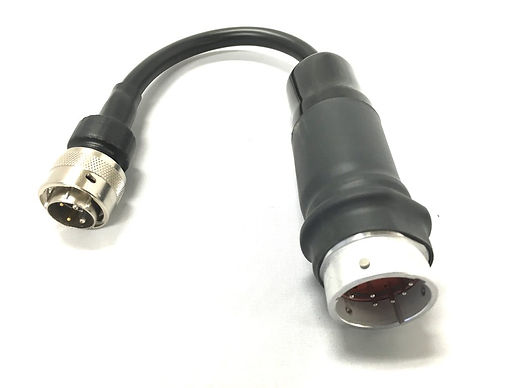

4-Pin Deutsch to 14-Pin Standard Adapter Available for All Skid Steer Manufacturers

  • Connects the wiring harness to the 14 Pin connector on any skid loader.

  • 14 Pin connector to 4 pin deutsch connector

  • Heavy duty braided sleeve protects wiring

  • 7" overall length

  • Can be ordered pre-wired to fit any skid steer manufacturer.

  • Part # 901A Wiring Harness for 12" and 16" Shear
    Supplied with new tree shears, available for purchase for older models or other attachments

  • Part # 902A 4 Pin Female Pigtail
    Universal pigtail for connecting the tree shear wiring harness (901A) to customer supplied wiring on loaders without factory wiring connections

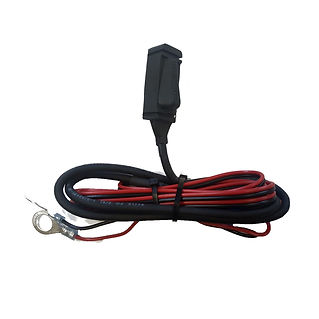

  • Part # 922A-923A Universal Wiring Harness Kit
    Kit includes everything needed to install a wiring harness on a loader without factory installed buttons for controlling electrical options. Available as a single output (Part# 922A) or double output (Part# 923A). Also available with choice of momentary or on/off switch(es). The switch(es) conveniently cable tie to the loaders existing joystick(s) for ease of operation. Kit comes complete with fused battery connections as well as installation instructions.

Specifications- Electrical Wiring Accessories
